Raymarine | SKU:
723193838150_MFD

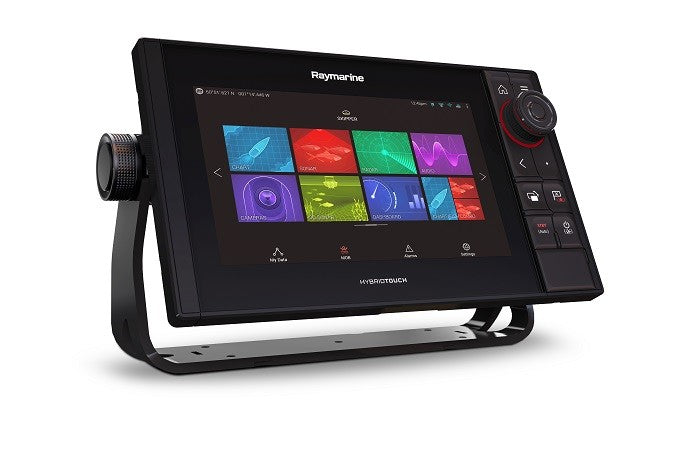

Raymarine Axiom Pro 9s Mfd No Transducer Lighthouse Nc3 North America
$2,149.99
Unit price /
Unavailable
Raymarine Axiom Pro 9s Mfd No Transducer Lighthouse Nc3 North America is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Raymarine Axiom Pro 9s Mfd No Transducer Lighthouse Nc3 North America
$2,149.99
Unit price /
Unavailable
Raymarine Axiom Pro 9S 9"" MFD With Single Channel CHIRP and Lighthouse NC3 North America Lakes and Coastal Tide Stations
Model: E70481-00-102- High CHIRP
- NMEA2000 & NMEA0183
- Sonar Scroll Back
- HybridTouch™
- Quad Core Processor
- Optical Bonding Technology & IPS Displays
- IP & Analog Video
- Clear Cruise™
- Quantum CHIRP, HD & SHD
| Display Size | 9"" IPS Optically Bonded LCD |
| Display Resolution | 1280 x 720 WXGA |
| Display Type | Multitouch |
| Brightness | 1,200 nits |
| Viewing Angle | Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right) |
| Mounting | Top, Front, Bracket |
| Waterproof Rating | IPX6 / IPX7 |
| Operating Temp | minus 13deg F to 131deg F (-25deg C to +55deg C) |
| Storage Temp | minus 22deg F to 158deg F (-30deg C to +70deg C) |
| Sensors | |
| Sonar Type - Built-in | High CHIRP |
| Sonar Connections | 25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable. |
| Sonar Depth | CHIRP Sonar = 900 feet (974 m) DownVision™ = 600 feet (183 m) |
| External Sonar | Yes - CP100, CP200, CP370, CP470, CP570 via RayNet |
| Radar | Yes - Quantum, Digital, HD Color and Super HD Color Radars |
| AIS | Yes - N2K compatible |
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288) |
| Autopilot Control | Yes - Evolution Autopilot |
| Thermal Night Vision | Yes - IP or Analogue |
| Video / Camera | 1 x Analogue input (BNC) Up to 10 IP Cameras |
| Weather | GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only |
| Audio | N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] |
| Digital Switching | Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update] |
| Remote Control | RMK-10 (A80438) & RCU-3 (E62351) |
| Networking | |
| Ethernet | 2 x 10/100/1000 Mbits/ Network (RayNet) |
| NMEA0183 | 1 Transmit / 2 Receive |
| NMEA2000 | 1 x NMEA2000 port (DeviceNet microC) |
| SeaTalkNG | Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box) |
| USB | 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440) |
| Wi-Fi | WiFi - 802.11 a / b / g / n |
| BlueTooth | Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] |
| Navigation | |
| Cartography | Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] |
| Waypoint/Routes/Tracks (Wpts/Rts/Trk) | 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
| MEMORY | |
| Internal | 16GB Solid State |
| 16GB Solid State | 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) |
| Input Voltage | 12V and 24V DC (8 V to 32 DC) |
| Input Draw | ~20W |
| Dimensions | 11.9"" x 6.85"" x 2.56"" (300 x 174 x 65 mm) |
What's in the Box:
- Axiom Pro 9S
- RayNet (F) to Raynet (F) Cable — 2M (A62361)
- Trunnion Cover
- Trunnion Knobs
- Trunnion Bracket
- Suncover (A80534)
- Power / Video / NMEA0183 Cable - Straight, 1.5M (R62379)
- Micro-C DeviceNet (F) to STNG (F) Cable - 1M (A06075)
- Panel Seal Gasket
- Bezel Pieces and Home / Menu Button
- Lighthouse NC3 North America Lakes and Coastal Tide Stations microSD
- Mounting Fixings
- Quick Start Guide
- Warranty Card
- Raymarine window decal
