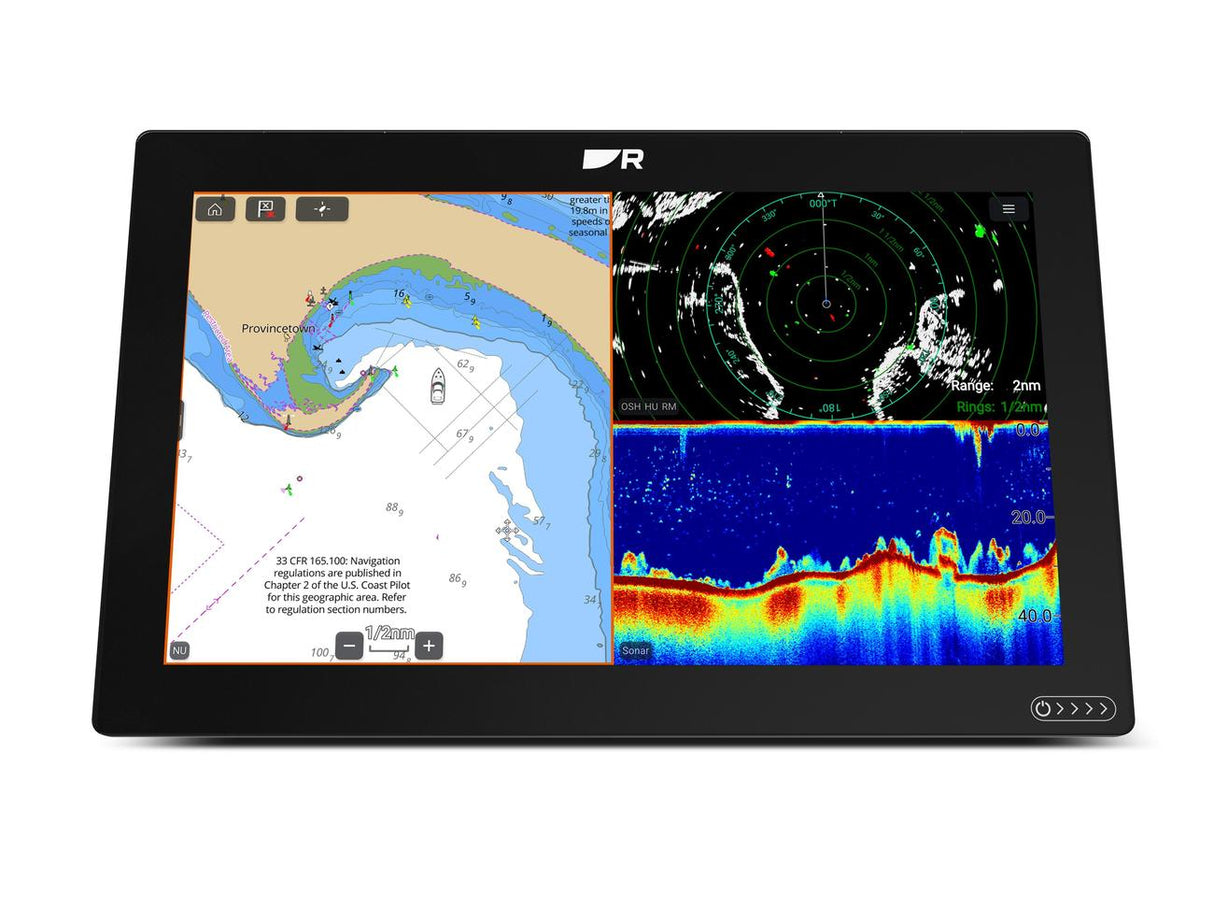

Raymarine Axiom2 XL 16 MFD
Model: E70661The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.
Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.
Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.
Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.
Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.
Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality.
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.
FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence.
Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder.
Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers.
Navigate with Confidence. Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display
Three RayNet Ethernet POE ports, NMEA2000, HDMI input, HDMI Output, USB, and remote keypad options give you the power to design an Axiom 2 XL glass bridge with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.
SpecificationsOff current @ 12 V dc | PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W) |
Off current @ 24 V dc | PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W) |
PoE operating voltage range | 9.5 V dc to 32 V dc 9.5 V dc to 32 V dc |
Current | 8.56 A |
Fuse rating | 15 A |
Nominal supply voltage | 12 V dc / 24 V dc |
Operating temperature | -25°C to +55°C (-13°F to 131°F) |
Storage temperature | -30°C to +70°C (-22°F to 158°F) |
Relative humidity | up to 93% @ 40°C (104°F) |
Waterproof rating | IPx6, IPx7 IPx6, IPx7 |
Weight | 5.9 kg (13 lbs) |
USB connection | USB-A: Touch input, USB-B: Touch output |
Accessory connection | USB Micro B |
GPS antenna connection | TNC type connector |
External storage | Remote card reader required |
Ethernet connection | PoE RayNet (10/100/1,000 Mbits/s) x 3 |
HDMI connections | HDMI in, HDMI out HDMI in, HDMI out HDMI in, HDMI out |
Audio output | Left and Right RCA connectors via Power/Video/Audio cable. |
Analog video connections | Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2) |
NMEA 2000 connection | DeviceNet connector Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) |
Wireless connections | Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n |
External alarm connection | Bare-ended wires x 2 Bare-ended wires x 2 |
Internal storage | 64 GB Solid State |
Input Voltage | 12 V dc / 24 V dc |
Input Draw | 76.56 W @ 12V / 71.53 W @ 24V |
Dimensions | Height: 248.22 mm (9.77 in), Width, 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in) |
What's in the Box:
- Raymarine Axiom2 XL 16 MFD
- Mounting gasket tape
- Rear mounting bars x 2
- Mounting bar fixings (M5x20 pozi countersunk) x 4
- Mounting fixings: Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet x 4
- Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
- Documentation
- DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
- RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
- Power/Video/Audio cable 1.5 m (4.92 ft) right-angled
