Raymarine | SKU:
723193826478_MFD
Raymarine Ray63 Vhf
$699.99
Unit price /
Unavailable
Raymarine Ray63 Vhf is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Raymarine Ray63 Vhf
$699.99
Unit price /
Unavailable

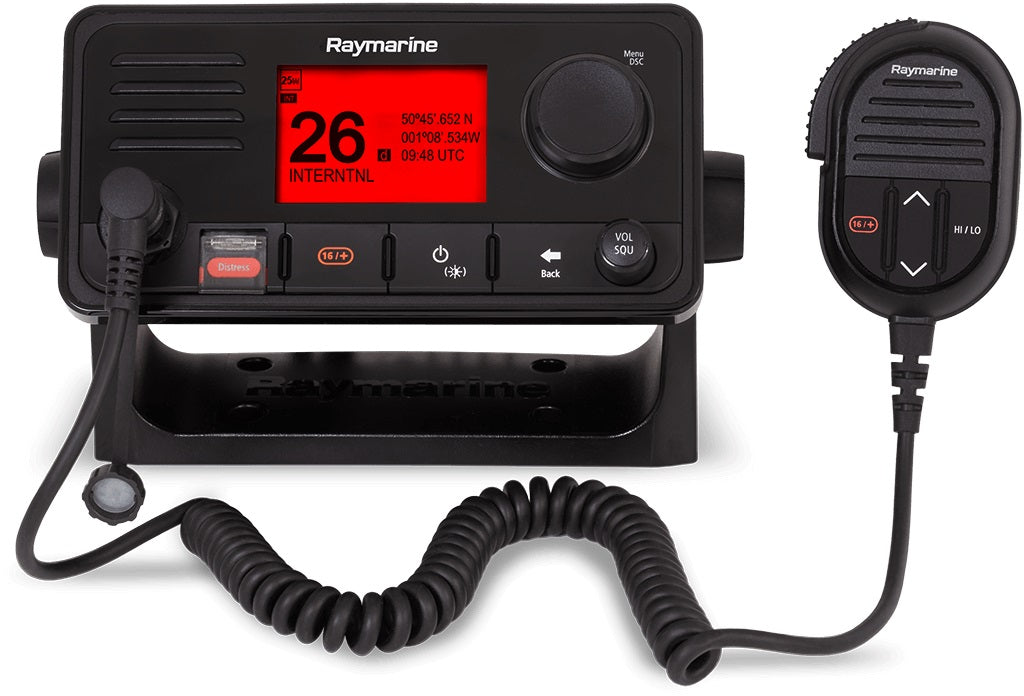

Raymarine RAY63 VHF Radio
Model: E70516- Full-sized marine VHF with Digital Selective Calling
- Wired or wireless expansion with optional RayMic handset stations
- Built-in GPS/GNSS receiver with connection point for optional external antenna
- NMEA2000 and NMEA0183 networking for integration with onboard systems
- Audio output connection for optional passive remote speaker (A80542)
- Surface and trunnion mount kits included
- Styled to compliment the Axiom family of multifunction displays
Raymarine’s Ray63 radio comes with oversized controls and a big screen for easy operation offshore. Ray63 is a full-function VHF marine radio with Class D Digital Selective Calling (DSC) and a built-in GPS receiver. The Ray63 also supports 1 wired or 2 wireless RayMic controllers for true multi-station control and intercom capability.
Specifications| Eviromental Specifications | |
| Operating Temperature | -20 C (-4 F) to +60 C (140 F) |
| Storage Temperature | -25 C (-13 F) to +70 C (158 F) |
| Relative Humidity | 95% |
| Water Proofing | IPx6 & IPx7 |
| Connections | 1x NMEA 0183, 1x SeaTalkng ® / NMEA 2000 , 1x Front Fistmic connection , 1x Rear connection for 2nd station , 1x Audio (RCA) , 1x GNSS (GPS) antenna (TNC) |
| Channels | All available US, International and Canadian VHF marine bands |
| Power | |
| Nominal Supply Voltage | 12 V dc (Reverse polarity and over voltage protection) |
| Operating Voltage Range | 9 Vdc to 16 Vdc |
| Current Consumption | Less than 6 A at high power (13.6 V) Standby: 600 mA Receive: 2 A |
| Transmitter | |
| Channels | All available US, International and Canadian VHF marine bands |
| Frequency Range | 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| Frequency Stability | +/- 1.5 ppm |
| Channel Spacing | 12.5 kHz |
| Power Output | Low power setting — 1 W - High power setting — 25 W |
| Antenna Impedance | 50 Ohms (typical) |
| Receiver | |
| Receiver Type | Double conversion super heterodyne |
| Channels | All available US, International and Canadian VHF marine bands |
| Sensitivity | Better than 1 microvolt EMF @20dB SINAD |
| Squelch Sensitivity | Less than —2 dB? EMF |
| Hum and Noise | Better than —40 dB |
| Audio Distortion | Less than 10% |
| Speaker | |
| Base Station Speaker Power Output | 2.5W (8 Ohms) |
| Fistmic Speaker Power | 1W (16 Ohms) |
| External Speaker Power | 5W (8 Ohms) |
| Handset Speaker Power Output | 1W (16 Ohms) |
| GNSS (GPS) | |
| Channels | 72 |
| Cold Start | <2 minutes |
| Receiver IC Sensitivity | —167 dBm (Tracking) / —148 dBm (Acquisition) |
| SBAS Compatibility | WAAS, EGNOS, MSAS |
| Special Features | Active Jamming and Interference Reduction |
| Signal Acquisition | Automatic |
| Almanac Update | Automatic |
| Geodetic Datum | WGS-84 (alternatives available through Raymarine MFD) |
| Refresh Rate | 10 Hz (10 times per second Concurrent GNSS) |
| Position Accuracy | Without SBAS: <= 15 metres 95% of the time, With SBAS: <= 5 metres 95% of the time |
What's in the Box:
- Ray63 VHF DSC Radio
- Sun cover
- Panel mount gasket
- Fistmic
- Mounting bracket (Trunnion)
- Mounting bracket knobs
- Fistmic hook plate
- Documentation
- Protective antenna boot
- SeaTalkng ® blanking plug
- SeaTalkng ® 400 mm (15.7 in.) spur cable
- 4x M4 nuts, spring washers and M4x25 machine screws (For Panel mounting)
- 4x M4x25 screws (For Bracket (Trunnion) mounting)
- 2x M4x12 screws (For Fistmic hook plate mounting).
