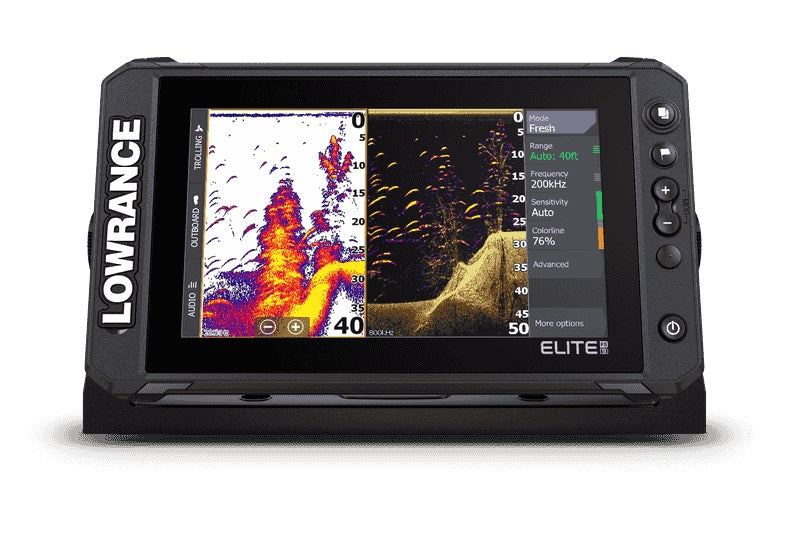

Lowrance Elite Fs 9 Active Imaging 3in1 Transducer C-map Contour+
Lowrance Elite Fs 9 Active Imaging 3in1 Transducer C-map Contour+ is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Lowrance Elite Fs 9 Active Imaging 3in1 Transducer C-map Contour+
Lowrance Elite FS 9 with Acdtive Imaging 3 in 1 and C-Map Contour+
Model: 000-15692-001- ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget™ and Active Imaging™ 3-in-1 Sonar
- Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
- High Resolution Multi-touch screen
- Preloaded with C-MAP Contour + charts (AMER,APAC)
- NMEA 2000®: Support and control NMEA 2000® devices
- Halo Radar: Drive Lowrance radar domes directly
- Total Control: Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools — including ActiveTarget™ live sonar, Active Imaging™, FishReveal™ and preloaded C-MAP® Contour™ + charts
Specifications| Environmental | |
| Operating temperature range | -15°C to +55°C (5°F to 131°F) |
| Storage temperature | -20°C to +60°C (4°F to 140°F) |
| Waterproof rating | IPX6 and IPX7 |
| Electrical | |
| Supply voltage | 12 V DC (10 - 17 V DC min - max) |
| Recommended fuse rating | 3 A |
| Power consumption (maximum) | 28 W (2 A at 13.8 V DC) |
| Display | |
| Resolution | 800 x 480 pixels |
| Viewing angles in degrees | 50° top, 60° bottom, 70° left and right |
| Brightness | > 1200 nits |
| Touch screen | Multitouch |
| Physical | |
| Weight (display only) | 1.2 kg (2.7 lbs.) |
| Compass Safe Distance | 0.5 m (1.6 ft.) |
| Interface/Connectivity | |
| NMEA 2000® | 1 port (Micro-C connector) |
| 1 port (Micro-C connector) | 1x slot (microSD, SDXC) |
| Ethernet | 1 port, (5-pin Ethernet connector, 100Base-T) |
| Sonar | 1 port (9-pin connector) |
| WiFI Internal | 802.11b/g/n : No wireless networking between units |
| Bluetooth® | 4.0 with support for Bluetooth® Classic |
| GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
What's in the Box:
- Elite FS 9 Display
- Sun cover
- Mounting bracket and knobs
- Power cable
- Fuse and fuse holder
- Active Imaging 3-IN-1 Transducer
