Raymarine | SKU:
723193813263_MFD
Raymarine Cam210 Day And Night Ip Bullet Camera
$829.99
Unit price /
Unavailable
Raymarine Cam210 Day And Night Ip Bullet Camera is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Raymarine Cam210 Day And Night Ip Bullet Camera
$829.99
Unit price /
Unavailable

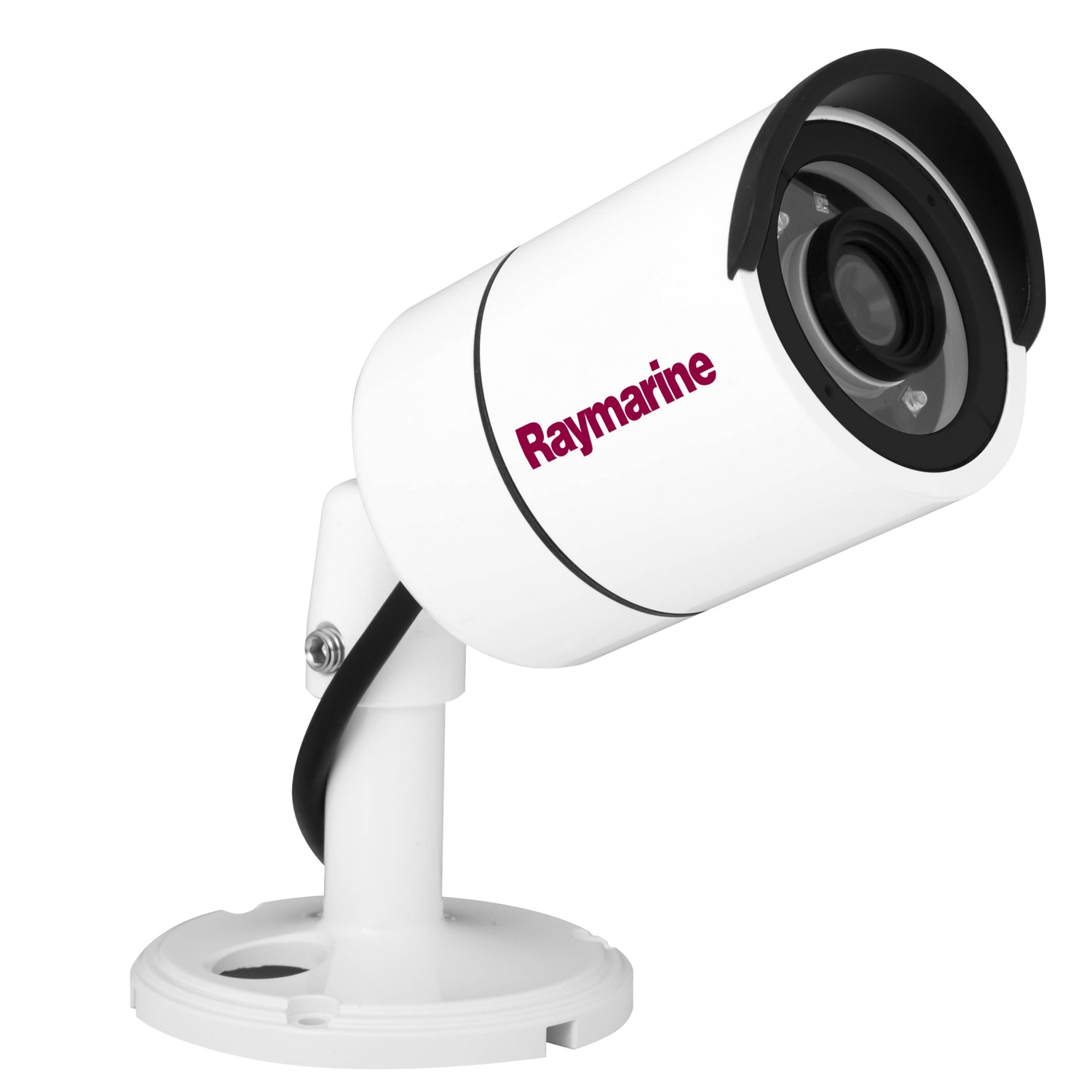

Raymarine CAM210 Day and Night IP Bullet Camera
Model: E70346UPC: 723193813263
- Plug and play integration with Raymarine MFD’s running Lighthouse II
- Power over Ethernet (PoE) or direct 12v DC power supply
- High bright IR LEDs for operation in total darkness
- Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)
- Intelligent IR technology for clear video images at night in all conditions
Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.
Specifications| System | |
| CPU | 32-bit ARM9 RISC CPU up to 432MHz |
| Flash/SDRAM | 128MB / 128MB |
| Camera | |
| Image sensor | 2.0 Megapixel 1/2.8"" SONY progressive scan CMOS(Exmor) |
| Total pixels | 1952(H) x 1116(V) 2.18 Megapixel |
| Effective pixels | 1944(H) x 1104(V) 2.15 Megapixel |
| S/N Ratio | More than 50dB |
| Minimum illumination | 0Lux (IR On) |
| IR Distance | 20 meters |
| Day 7 Night | ICR |
| Lens | 6.0mm Megapixel Board Lens |
| Field of view | Diagonal = 63.6 deg +/- 3 deg Horizontal = 53.3 deg +/- 3 deg Vertical = 33.1 deg +/- 3 deg |
| Video | |
| Video compression | H.264 High Profile@4.0, MJPEG —Image quality: 3 Steps |
| Recolution | Up to 1920 x 1080 (Full HD) |
| Frame rate | H.264 Up to 30fps with 1920x1080 , MJPEG Up to 30fps with VGA resolution |
| Video streaming | Support multi stream with H.264, MJPEG Adjustable frame rate CVBR/CBR in H.264 |
| Pan/Tilt/Zoom | Digital Pan, Tilt and Zoom |
| Image Setting | Day & Night Auto White Balance Auto Exposure Privacy Mask Effects - Colour, Sharpness, Mirror / V-Flip |
| System integration | |
| Security | Password protection, User access log, HTTPS encryption |
| Supported protocol | HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP |
| Intelligent video | Motion detection up to 1920x1080 with 4x3 blocks |
| Physical | |
| Power source | DC12V/1.5A, PoE(Power over Ethernet): 802.3af |
| Power consumption | Max. 3.3W, Max. 5.3W with IR |
| LED's | Power, Network Connection |
| Dimensions | 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket |
What's in the Box:
- CAM210 IP Camera Stand
- Waterproof Coupler
- CAM210 Hardware Kit
- CD (English)
- CAM210 Mounting Template
- Warranty Booklet
