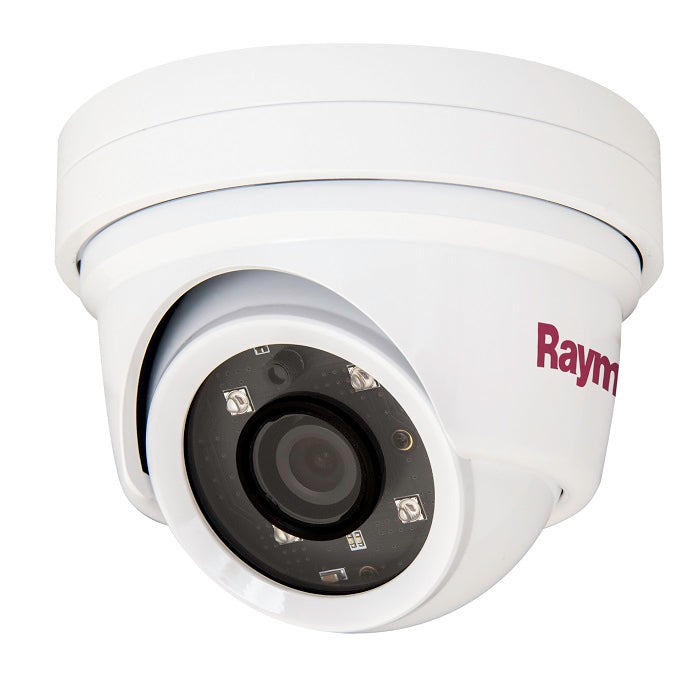

Raymarine Cam220 Day And Night Ip Eyeball Camera
Raymarine CAM220 IP Marine Day and Night Network Eyeball Camera
Model: E70347UPC: 723193813270
- Plug and play integration with Raymarine MFDs running Lighthouse II
- Power over Ethernet (PoE) or direct 12v DC power supply
- Simple mechanical frame allows the camera to be locked, rock steady, into position
- High bright IR LEDs for operation in total darkness
Ruggedised, High Definition, Day and Night network eyeball video camera suitable for above or below deck applications. Eyeball design provides all round selected viability whilst the small frame size allows for rapid installation. Stylised to blend in with your boat’s aesthetic design.Ruggedised, High Definition, Day and Night network eyeball video camera suitable for above or below deck applications.
Eyeball design provides all round selected viability whilst the small frame size allows for rapid installation. Stylised to blend in with your boat’s aesthetic design.
Specifications| System | |
| CPU | 32-bit ARM9 RISC CPU up to 432MHz |
| Flash/SDRAM | 128MB/128MB |
| Camera | |
| Image sensor | 2.0 Megapixel 1/2.8"" SONY progressive scan CMOS(Exmor) |
| Total pixels | 1952(H) x 1116(V) 2.18 Megapixel |
| Effective Pixels | 1944(H) x 1104(V) 2.15 Megapixel |
| S?N Ratio | More than 50dB |
| Minimum Illumination | 0Lux (IR On) |
| IR Distance | 20M (4 Built-in High Power LED’s) |
| Day & Night | ICR |
| Lens | 3.6mm Wide angle Megapixel Board Lens |
| Field of View | Horizontal = 51.0 deg +/- 3 deg Vertical = 93.0 deg +/- 3 deg |
| Video | |
| Video Compression | H.264 High Profile@4.0, MJPEG —Image quality: 3 Steps |
| Resolution | Up to 1920 x 1080 (Full HD) |
| Frame rate | H.264 Up to 30fps with 1920x1080 , MJPEG Up to 30fps with VGA resolution |
| Video Streaming | Support multi stream with H.264, MJPEG, Adjustable frame rate, CVBR/CBR in H.264 |
| Image settings | Day & Night Auto White Balance Shutter Speed (1/4~1/2,000) DSS BLC Brightness, Contrast, Sharpness, Mirror |
| System integration | |
| Security | Password protection, User access log, HTTPS encryption |
| Supported protocol | HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP |
| Intelegent video | Motion detection up to 1920x1080 with 12x12 blocks |
| Physical | |
| Power source | DC12V/1.5A, PoE(Power over Ethernet): 802.3af |
| Power consumption | Max. 5.4W with IR |
| LED's | Power, Network Connection |
| Dimensions | 178mm(D) x 66 ( ) |
What's in the Box:
- CAM220
- Waterproof Coupler
- CAM220 Hardware Kit
- CAM220 Mounting Template
- CD (English)
- Warranty Booklet
