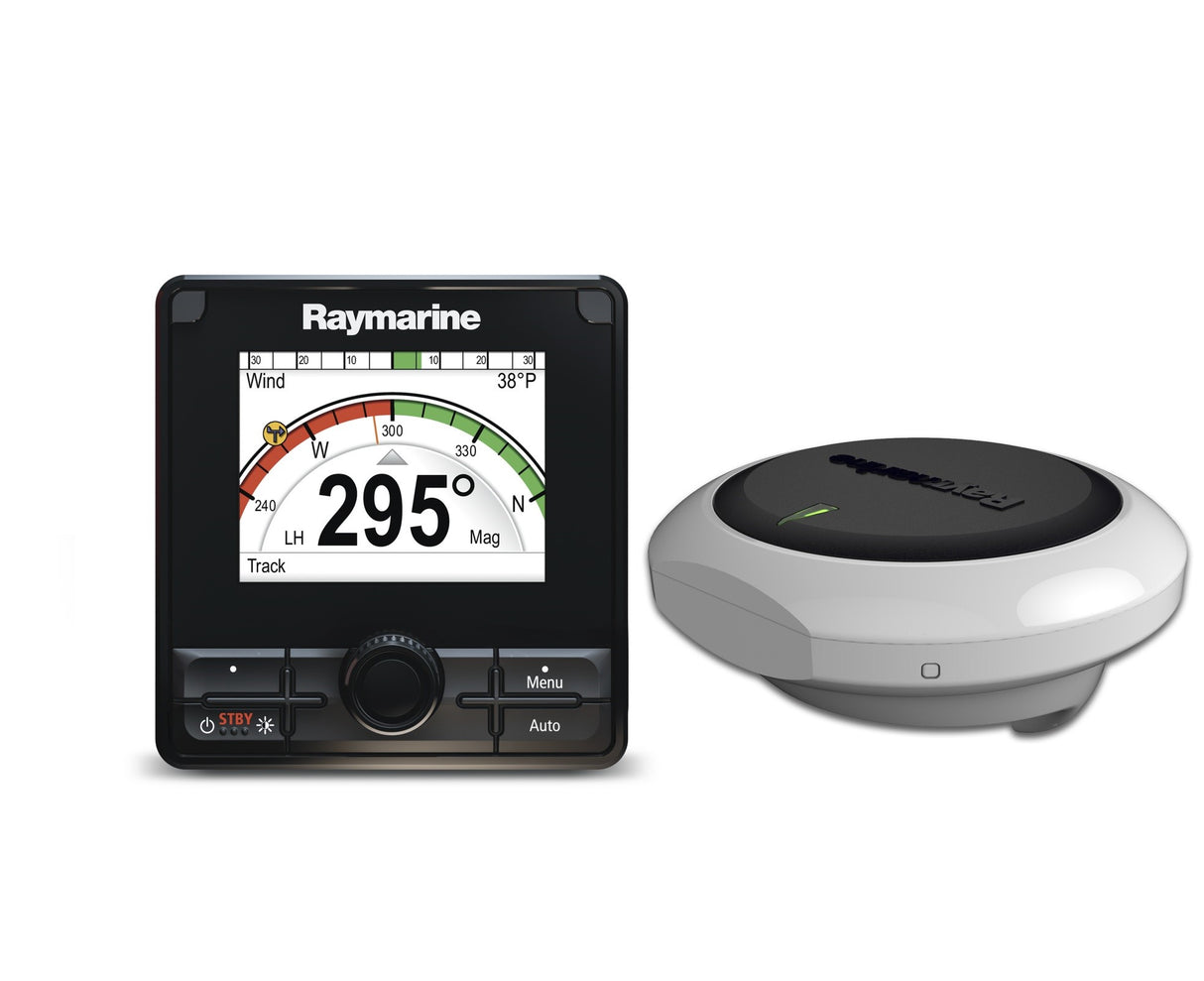

Raymarine Ev-dbw Pilot Optimus And Yamaha Helm Master Steering

Raymarine EV-DBW Pilot

Optimus/Helmmaster Steering

• EV-DBW w/ Drive By Wire Steering Systems
• New LightHouse User Interface
• Wide Horizontal & Vertical Viewing Angles
• Start Up Wizard - Configures The Pilot Quickly & Easily
• Supported Autopilot Modes - Auto - Standby - Pattern - Track - Wind Vane - Power Steer - Jog Steer
• Push Buttons & a Rotary Control Dial
• Support for Multiple Data Sources
• Simple SeaTalkng Connectivity To the Control Head 7amp; ACU
• CAN Bus Port for Direct Connection to: -ZF Pod Drives -Volvo IPS & Volvo Aquamatic -Teleflex Optimus Systems -Yanmar VC10 and JC10 (Joystick) Control Systems
• IPX6 & IPX7 Waterproof
• Designed for Vessels W/ The Latest Generation Of Drive By Wire Steering Systems

The Raymarine T70164 is a Sail evolution system package consisting of p70R autopilot control head, EV-1 sensor core and ACU actuator control unit. The p70R control heads feature vibrant colour displays and are powered by Raymarine’s intuitive LightHouse user interface. LightHouse organises all options into simple menu structures and with Evolution’s quick setup process you will be up and running in minutes. Designed for sailing yachts, the p70 offers simple 1 and 10 degree direct course change push buttons.

The EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards. The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.

• P70R control
• EV-2 Sensor Core
• Evolution Cabling Kit
• Evolution EV-2 Cable Kit
