Simrad | SKU:
9420024162606_MFD
Simrad Bronze Hdi Thru Hull 50/200/455/800 Khz 9-pin 0d
$519.00
Unit price /
Unavailable
Simrad Bronze Hdi Thru Hull 50/200/455/800 Khz 9-pin 0d is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Simrad Bronze Hdi Thru Hull 50/200/455/800 Khz 9-pin 0d
$519.00
Unit price /
Unavailable

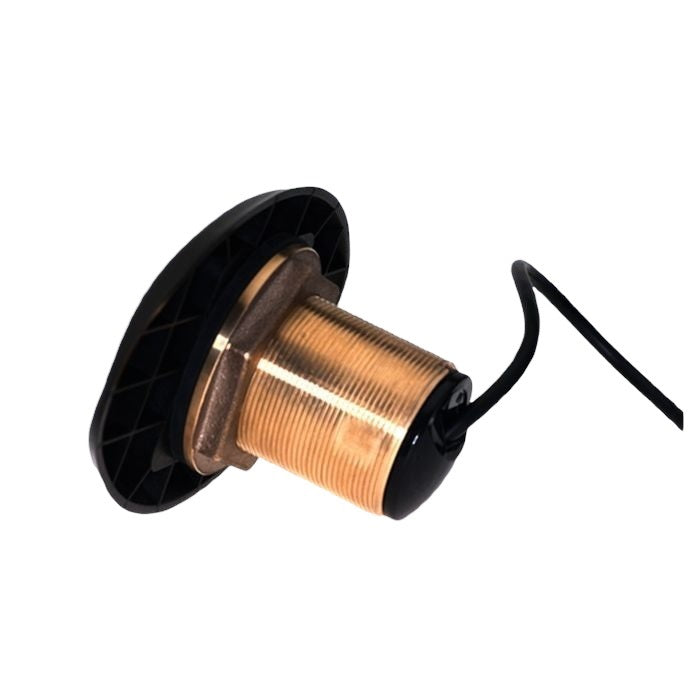

Simrad Bronze HDI XDCR 0deg Tilt 50/200 455/800
Model: 000-13905-001- Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature
The transducer comes with a 33 ft cable and Black 9 Pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device.
Specifications| Frequencies | 50,200,455 and 800 kHz |
| Beam width @ -3db | 50kHz 45° 200kHz 11° 455kHz Fore to aft 2.8°, Port to starboard 56° 800kHz Fore to aft 1.6°, Port to starboard 32° |
| Cable length | 10 meter |
