Simrad | SKU:
9420064120437_MFD
Simrad Cam-1 Ip Camera Stainless Steel Marine Grade
$579.00
Unit price /
Unavailable
Simrad Cam-1 Ip Camera Stainless Steel Marine Grade is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Simrad Cam-1 Ip Camera Stainless Steel Marine Grade
$579.00
Unit price /
Unavailable

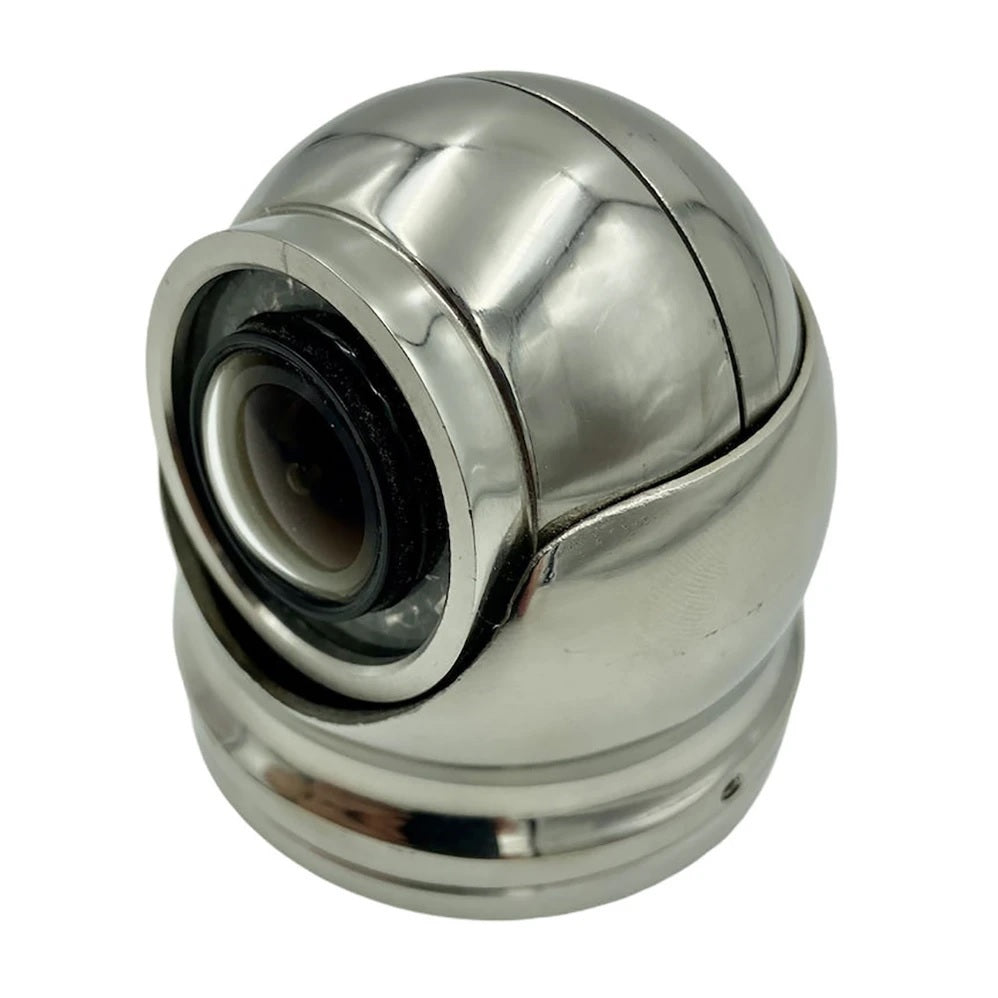

Simrad CAM-1 Marine grade 316 Stainless Steel IP Camera
Model: 000-15876-001- Pre-configured for use with Simrad, Lowrance and B&G MFDs
- Fast setup on each MFDs
- Rugged 316 Marine Grade Stainless Steel Housing
- 1.8mm 160° viewing angle - See the entire deck
- Compatible with NOS 20.2 or later
- Built In IR LED Illumination (10m Range)
- PoE IEEE802.3af Power Option
- Extremely Low Power Consumption
- IP66 Environmental Protection
| Power | |
| PoE | IEEE802.3af (RJ45) |
| DC | 12V DC (10-16V) DC 2.1/5.5mm Male CCTV power connector |
| Power Consumption | |
| IR LED Off | 1.38W (0.1A at 13.8V DC) |
| IR LED On | 2.76W (0.2A at 13.8V DC) |
| Enviromental | |
| Operating temperature | -30°C to +60°C (-22°F to 140°F) |
| IP Rating | IP66 |
| Resolution | |
| Main stream | 1080p (1920x1080) |
| Sub Stream | 448p (800x448) |
| Protocol | RTSP |
| Mechanical | |
| Lens | 1.8mm (160° Wide Angle) |
| Sensor | 1/4"" CMOS |
| Housing | 316 Stainless steel |
| Weight | 420g |
| MFD resolutions capabilities: | |
| NSSevo3S, Zesu3S (9",12", 16") | High Resolution 1080p |
| NSOevo3S MFDs, Zeus3S MFDs | High Resolution 1080p |
| NSOevo3S MPU, Zeus3S MPU | High Resolution 1080p |
| Information Display (9" & 12") | Low Resolution 448p |
| NSSevo3, Zeus3 (7" & 9") | Low Resolution 448p |
| NSOevo3 MFD, Zeus3 MFD | Low Resolution 448p |
| NSOevo3 MPU, Zeus3 MPU | Low Resolution 448p |
| Zeus2 MPU | Low Resolution 448p |
| HDS Live | |
