Simrad | SKU:
9420064115310_MFD

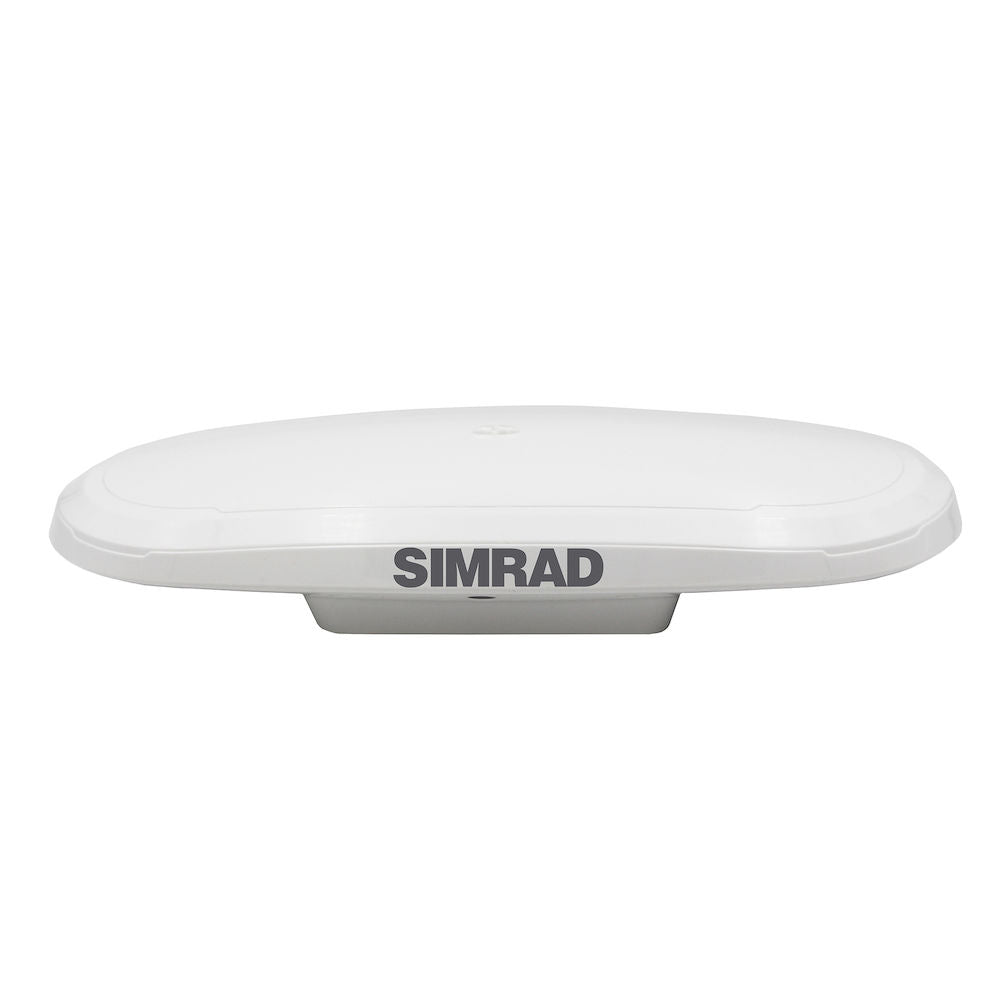

Simrad Hs75 Gnss Compass
$2,480.00
Unit price /
Unavailable
Simrad Hs75 Gnss Compass is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Simrad HS75 GNSS Compass
Model: 000-15585-001- Supports all current global GNSS constallations, GPS, Galileo, GLONASS, BeiDou, QZSS
- Small form factor
- Heading accuracy 0.75 degrees
- High precision positioning
- Fast start-up time
- Plug and play installation
- Dead-reckoning during temporary satellite outage
- Plug and play with Simrad autopilot and radar systems
- 10 Hz heading and position update rate
- NMEA 2000 only
- Mounts directly on flat surface
- NMEA 2000 cable sold separately in different lengths
- Well suited as autopilot heading source
| Connectivity | |
| NMEA 2000 | Yes |
| Electrical | |
| Supply Voltage | 6 - 36 VDC |
| Power Consumption, typical | 3.2 W |
| Humidity | 95% non-condensing |
| Environment | |
| Operating Temperature Range | -40°C - +70°C (-40°F - +158°F) |
| Storage Temperature Range | -40°C - +85°C (-40°F - +185°F) |
| Waterproof rating | IPX7 |
| Heading Sensor | |
| Accuracy | 0.75° RMS |
| Type | GNSS Compass with integrated gyro aiding |
| Physical | |
| Dimensions (W x H x D) | 158 x 74 x 348 mm (6.2 x 2.9 x 13.7 in) |
| Mounting Type | surface mount, pole mount |
| Weight | 0.75 kg (1.65 lbs) |
