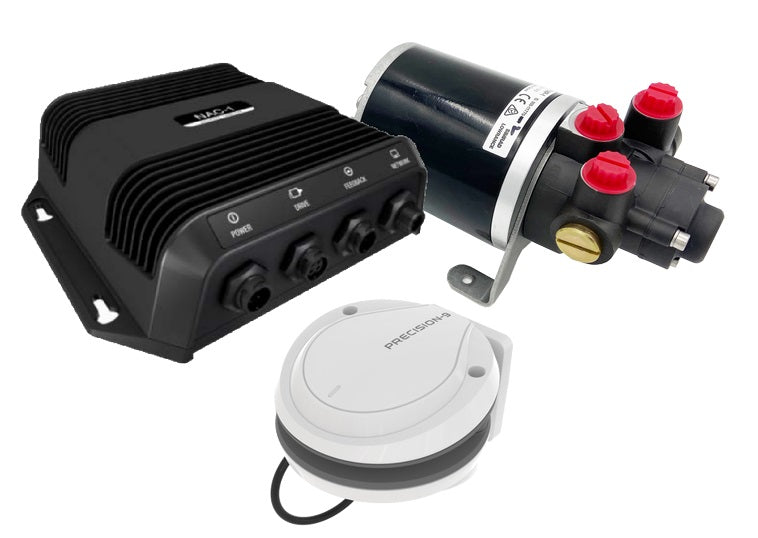

Simrad Nac-1 Outboard Pilot Hydraulic Pack, Mkii Pump-1 Includes Precision-9
$1,749.00
Unit price /
Unavailable
Simrad Nac-1 Outboard Pilot Hydraulic Pack, Mkii Pump-1 Includes Precision-9 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Simrad Outboard Pilot Hydraulic Pack with MKII Pump-1 AND Precision-9 Heading Sensor
Model: 000-15951-001- Easy to Install
- Dash-mount button for one-touch Auto/Standby activation
- Steer to Heading, Course or Route
- Automatic Turn Patters
- NAC-1 Plug & Socket connectors — no screw terminals or wire stripping necessary
- High efficiency, super-quiet 0.8L hydraulic gear pump (Pump-1 MKII)
- Add a second Helm station to a boat using the MFD Power steer commands — no need for additional hydraulics + steering wheel.
Outboard Pilot is an MFD Autopilot add-on system designed for boats up to 30ft with single outboard motor. System packs contain everything you need to fit an Autopilot to Hydraulic or Cable steer outboard motors.
Specifications| Supply Voltag | 12vDC |
| Max Drive output | 8A continuous, 16 Amp peak |
| Interfaces | |
| Network | 1xMicroC |
| Feedback | Variable voltage from HELM -1 drive unit |
| Drive output | To PUMP-1 or HELM-1 |
What's in the Box:
- NAC-1 AUTOPILOT COMPUTER
- PUMP-1 - 12V 0.8L For outboard pilot
- Autopilot pump fitting kit for ORB steering system
- Auto-Stby Button - Metal
- N2KEXT-2RD - 0.61 m (2-ft) NMEA 2000® cable
- N2KEXT-6RD - 1.82 m (6-ft) NMEA 2000® cable
- N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000® cable
- TR-120-KIT - Set of 1 male and 1 female NMEA 2000® terminators
- MICRO-C Power cable only
- Low loss NMEA2000 4-way joiner
- Precision-9 Compass
